Finding the best generator interlock kit involves balancing safety, compatibility, and ease of installation. The top pick, the Generator Interlock Kit for Eaton Cutler Hammer BR Series, offers broad compatibility and straightforward setup, making it ideal for most users. The Square D QO and Homeline Kits stand out for their reliability in residential panels, while some options are more suited to specific panel brands or larger load centers. Many buyers face tradeoffs between cost, ease of use, and versatility. Continue reading for a detailed breakdown of these options and what makes each one unique.
Key Takeaways
- Compatibility with specific panel brands significantly influences the best choice for your setup.
- Top picks balance ease of installation with reliable electrical safety features.
- Premium options tend to offer broader panel compatibility and more durable construction.
- Lower-cost kits may sacrifice some flexibility or ease of use but still provide essential safety functions.
- Understanding your panel’s amperage and brand ensures a smoother, safer installation process.
| Generator Interlock Kit for Eaton Cutler Hammer BR Series 150/200 Amp Panels |  | Best Overall | Compatibility: Eaton/Cutler Hammer BR and CH Series panels | Main Breaker Size: 150 and 200 amps | Spacing: 1 1/4 to 1 7/16 inches | VIEW LATEST PRICE | See Our Full Breakdown |
| Generator Interlock Kit for Eaton Cutler Hammer CH Series 150/200 Amp Panels – TAN Breaker Only |  | Best for TAN Breaker Panels | Compatible Models: CH series 150/200 amp panels with TAN breakers | Breaker Type: TAN Breaker Only | Spacing: 1.5 inches | VIEW LATEST PRICE | See Our Full Breakdown |
| Generator Interlock Kit for Murray and Siemens 150/200 Amp Panels |  | Best for Siemens and Murray Panels | Compatible panels: Siemens and Murray 150/200 amp panels | Spacing between breakers: 7/8 to 1 1/4 inches | Material: High-quality, corrosion-resistant | VIEW LATEST PRICE | See Our Full Breakdown |
| Generator Interlock Kit for Square D QO and Homeline 150/200 Amp Panels |  | Best for Square D Owners | Compatibility: Square D QO and Homeline 150/200 amp panels | Spacing: 1 3/8 inches | Material: Sturdy steel | VIEW LATEST PRICE | See Our Full Breakdown |
| Homeline Generator Interlock Kit for 150A-225A Load Centers |  | Best for Heavy-Duty, Long-Term Use | Compatibility: Homeline 150A-225A load centers | Material: Stainless steel | Includes: Interlock bracket, retaining bracket, hole drilling template | VIEW LATEST PRICE | See Our Full Breakdown |
| Generator Interlock Kit for Square D QO and Homeline 150/200 Amp Panels |  | Best for Compatibility with Popular Panel Brands | Compatibility: Square D QO and Homeline 150/200 Amp Panels | Spacing Between Main and Generator Breaker: 1 3/8 inches | Includes: Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties | VIEW LATEST PRICE | See Our Full Breakdown |
| Generator Interlock Kit for Square D QO and Homeline 100/125 Amp Panels |  | Best for Cost-Effective, Small Panel Applications | Compatible Models: Square D QO and Homeline 100/125 Amp Panels | Spacing: 3/4 to 7/8 inches | Includes: Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions | VIEW LATEST PRICE | See Our Full Breakdown |
| Generator Interlock Kit Compatible with Eaton Cutler Hammer CH Series 150/200 Amp Panels |  | Best Compatibility for TAN Breaker Panels | Compatibility: Eaton/Cutler Hammer CH series panels with TAN breakers | Breaker amperage: 150 and 200 amp | Spacing: 1.5 inches between main and branch breakers | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
Generator Interlock Kit for Eaton Cutler Hammer BR Series 150/200 Amp Panels
This interlock kit stands out for its broad compatibility with Eaton/Cutler Hammer BR and CH series panels, combining safety, affordability, and ease of installation. Compared with the Square D options, this kit offers a straightforward solution suitable for those already using Eaton panels, reducing the need for multiple parts or complex wiring. It prevents simultaneous breaker operation, which is critical for safe backfeeding during outages. While installation requires moderate electrical knowledge, it benefits from a comprehensive kit that includes all essential components, making it accessible for DIY enthusiasts with some experience. The main limitation is its restriction to specific panel models, so compatibility checks are essential before purchase.
Pros:- Broad compatibility with Eaton/Cutler Hammer panels
- Cost-effective and easy to install for experienced DIYers
- Ensures safe operation during power outages
Cons:- Installation may require some electrical knowledge
- Limited to specific panel models, requiring compatibility verification
Best for: Homeowners with Eaton/Cutler Hammer panels seeking a cost-effective and reliable interlock solution.
Not ideal for: Beginners or those with non-compatible panels who lack electrical experience or need a universal kit.
- Compatibility:Eaton/Cutler Hammer BR and CH Series panels
- Main Breaker Size:150 and 200 amps
- Spacing:1 1/4 to 1 7/16 inches
- Handle Type:Single handle horizontal throw
- Installation:All components included
- Safety Feature:Prevents simultaneous main and generator breaker operation
Bottom line: This kit makes the most sense for Eaton panel owners comfortable with basic electrical work seeking a dependable, budget-friendly solution.
Generator Interlock Kit for Eaton Cutler Hammer CH Series 150/200 Amp Panels – TAN Breaker Only
This interlock kit is tailored for Eaton CH series panels with TAN breakers, offering a safe and reliable method to connect a portable generator during outages. Compared to the standard Eaton kit, this one emphasizes compatibility with TAN breakers, which can be a common choice for certain panels. It guarantees that the main breaker cannot be on when the generator breaker is active, reducing risk during power transfer. Installation is straightforward with included tools and labels, but it’s limited to TAN breaker panels, so users with PON type breakers will need a different solution. This specificity makes it ideal for owners of compatible panels but a poor fit otherwise.
Pros:- Ensures safe backfeeding with TAN breaker panels
- Includes comprehensive installation tools and labels
- Easy to install for qualified DIYers
Cons:- Limited to TAN breaker panels, not PON types
- Requires checking panel compatibility before purchase
Best for: Owners of Eaton CH panels with TAN breakers looking for a dedicated, easy-to-install interlock kit.
Not ideal for: Panel owners with PON breakers or those with non-Eaton panels needing a more universal solution.
- Compatible Models:CH series 150/200 amp panels with TAN breakers
- Breaker Type:TAN Breaker Only
- Spacing:1.5 inches
- Installation:Includes drill bit and labels
- Safety Feature:Prevents main and generator breaker overlap
- Kit Includes:Interlocking plate, screws, nuts, drill bit, labels
Bottom line: This kit suits owners with specific TAN breaker Eaton panels who want a simple, safe solution without extra electronics.
Generator Interlock Kit for Murray and Siemens 150/200 Amp Panels
This interlock kit targets owners of Siemens and Murray panels, emphasizing durability with corrosion-resistant materials and comprehensive installation components. It differs from Eaton or Square D options by focusing on high-quality construction, making it a good choice for outdoor or harsh environments. The kit ensures safe switching by preventing simultaneous utility and generator power, a feature shared with other top-rated options. However, professional installation is recommended, which might be a barrier for DIYers without electrical experience. Compatibility depends on correct panel model and breaker spacing, so buyers should verify their panel specifications carefully. This pick makes the most sense for those needing a robust, weather-resistant solution for specific panel types.
Pros:- High-quality, corrosion-resistant material
- Includes all installation hardware and labels
- Ensures safe, reliable transfer between utility and generator
Cons:- Professional installation recommended
- Compatibility depends on exact panel and spacing
Best for: Homeowners with Siemens or Murray panels who want a durable, corrosion-resistant interlock kit.
Not ideal for: Users with different panel brands or those seeking a simple DIY install without professional help.
- Compatible panels:Siemens and Murray 150/200 amp panels
- Spacing between breakers:7/8 to 1 1/4 inches
- Material:High-quality, corrosion-resistant
- Package includes:Interlocking panel, drill bit, screws, labels, straps
- Warranty:2 years
Bottom line: This kit is best suited for owners of Siemens or Murray panels needing a rugged, weatherproof interlock solution.

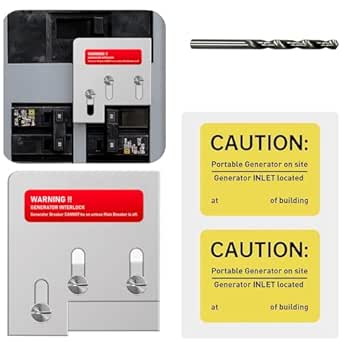

Generator Interlock Kit for Square D QO and Homeline 150/200 Amp Panels
This kit excels for owners of Square D QO and Homeline panels, providing a straightforward, reliable method to connect a generator safely during outages. Compared with Eaton or Murray options, this kit is designed for popular Square D panels, making it a top choice for many residential setups. The installation involves drilling into the panel, which might be a drawback for those uncomfortable with panel modifications, but it offers a secure, non-electronic solution that doesn’t rely on automatic features. Its sturdy steel construction ensures durability, although its compatibility is limited to specific models. For those comfortable with panel modifications, this kit provides a proven, safe connection method.
Pros:- Compatible with popular Square D panels
- Easy to install with included drill bit and instructions
- Provides a secure manual generator connection
Cons:- Requires drilling into the panel
- Limited to specific models
- No automatic features, manual operation only
Best for: Homeowners using Square D QO or Homeline panels who want a reliable, manual interlock solution.
Not ideal for: People with different panel brands or those seeking an automatic or electronic interlock system.
- Compatibility:Square D QO and Homeline 150/200 amp panels
- Spacing:1 3/8 inches
- Material:Sturdy steel
- Package Contents:Interlock plate, screws, nuts, labels, drill bit
- Installation method:Requires drilling into breaker panel
Bottom line: This kit makes the most sense for Square D panel owners who prefer a simple, manual interlock with proven safety features.
Homeline Generator Interlock Kit for 150A-225A Load Centers
This interlock kit stands out for its robust stainless steel construction, making it a durable choice for those seeking a permanent, reliable setup. Compared to the Square D-compatible kits, it offers superior resistance to impact and corrosion, ideal for outdoor or demanding environments. However, installation involves drilling and precise alignment, which may be challenging for DIYers without electrical experience. The included components are comprehensive, reducing the need for additional parts, but its compatibility is limited to specific load centers. This kit is best suited for homeowners or contractors installing permanent generator connections in long-term settings.
Pros:- Durable stainless steel construction for long-lasting use
- Complete kit with all necessary components included
- Ensures a safe and secure generator connection
Cons:- Requires drilling and precise installation effort
- Limited compatibility to specific load center models
Best for: Homeowners with Homeline load centers looking for a durable, long-term solution
Not ideal for: Renters or those with non-Homeline panels who prefer a quick, no-drill installation
- Compatibility:Homeline 150A-225A load centers
- Material:Stainless steel
- Includes:Interlock bracket, retaining bracket, hole drilling template
- Impact Resistance:Yes
- Corrosion Resistance:Yes
- Installation Method:Drilling required
Bottom line: This kit is a solid choice for those needing a durable, permanent generator interlock in Homeline panels, accepting the installation effort involved.
Generator Interlock Kit for Square D QO and Homeline 150/200 Amp Panels
This kit excels in providing a straightforward, comprehensive solution for Square D QO and Homeline panels, with detailed components like labels and a drill bit for easier installation. Compared with the Homeline-only kit, it offers broader compatibility, making it suitable for users with dual panel types. However, installation requires careful attention to spacing and proper positioning to avoid errors, which might be daunting for amateurs. While it includes everything needed for a professional-quality setup, the complexity of installation suggests it’s better suited for those with some electrical experience or professional help. It makes the most sense for homeowners upgrading existing panels or electricians installing a reliable interlock.
Pros:- Compatible with two popular panel brands
- Includes comprehensive installation components
- Prevents simultaneous utility and generator power
Cons:- Installation can be complex for non-professionals
- Requires precise placement to avoid errors
Best for: DIY homeowners with Square D or Homeline panels seeking a versatile, all-in-one kit
Not ideal for: Complete beginners or those uncomfortable with detailed installation steps
- Compatibility:Square D QO and Homeline 150/200 Amp Panels
- Spacing Between Main and Generator Breaker:1 3/8 inches
- Includes:Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties
- Safety Feature:Prevents utility and generator breakers from being on simultaneously
- Material:Not specified
- Installation Complexity:Moderate to high
Bottom line: This kit provides a dependable, all-in-one solution for those familiar with electrical setups in Square D or Homeline panels, with some installation effort involved.

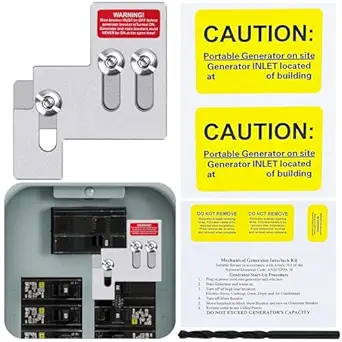

Generator Interlock Kit for Square D QO and Homeline 100/125 Amp Panels
This interlock kit offers a practical and affordable solution for smaller panels, ensuring safety without the complexity of larger models. Compared with the 150/200 amp versions, it features a narrower spacing (3/4 to 7/8 inches), which simplifies installation in compatible panels. However, its limited compatibility to 100 and 125 amp panels restricts its use for larger setups. The included components, like the interlocking plate and labels, facilitate a straightforward installation process, but some basic electrical knowledge is required. It’s a strong option for those with smaller panels who want reliable backup power without overspending or unnecessary complexity.
Pros:- Cost-effective for small panel applications
- Includes all necessary components for installation
- Prevents the main breaker from being on simultaneously with generator
Cons:- Limited to 100/125 Amp panels
- Requires some electrical knowledge for proper installation
Best for: Homeowners with 100/125 Amp panels seeking a simple, affordable generator interlock
Not ideal for: Users with larger panels or those unfamiliar with electrical work who prefer plug-and-play solutions
- Compatible Models:Square D QO and Homeline 100/125 Amp Panels
- Spacing:3/4 to 7/8 inches
- Includes:Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions
- Safety:Prevents concurrent breaker operation
- Installation Difficulty:Moderate
- Price Range:Lower
Bottom line: This kit is ideal for small-panel users wanting a straightforward, budget-friendly safe connection method, with some basic installation skill needed.
Generator Interlock Kit Compatible with Eaton Cutler Hammer CH Series 150/200 Amp Panels
This generator interlock kit stands out for its tailored design for Eaton/Cutler Hammer CH series panels with TAN breakers, making it an ideal choice for homeowners already equipped with these panels. Unlike the universal kits designed for Square D or Siemens panels, this model offers a precise fit and reliable operation, especially with its 1.5-inch spacing that ensures safety during generator connection. Its installation process is straightforward, including all necessary components like a drill bit, screws, and labels, which reduces the setup complexity. However, the limited compatibility—only with TAN breaker panels—means it won’t work for PON type panels or other brands, narrowing its scope. This pick makes the most sense for those who already have Eaton/Cutler Hammer CH panels and want a dedicated, easy-to-install solution that prioritizes safety and reliability.
Pros:- Specifically designed for Eaton/Cutler Hammer CH panels with TAN breakers, ensuring proper fit and function
- Includes all necessary installation components, simplifying setup
- Provides a safe mechanism to prevent main breaker operation during generator use
Cons:- Limited to TAN breaker panels, restricting its versatility
- Requires verification of panel compatibility before purchase
Best for: Homeowners with Eaton/Cutler Hammer CH series panels using TAN breakers seeking a seamless, dedicated interlock solution.
Not ideal for: Buyers with PON type panels or different brands, as this kit isn’t compatible with non-TAN breakers or other panel types.
- Compatibility:Eaton/Cutler Hammer CH series panels with TAN breakers
- Breaker amperage:150 and 200 amp
- Spacing:1.5 inches between main and branch breakers
- Installation:Easy, includes drill bit and instructions
- Includes:Interlocking plate, screws, nuts, labels, zip ties, drill bit, instructions
- Safety Feature:Prevents main breaker from being on while generator breaker is active
Bottom line: This interlock kit is perfect for Eaton/Cutler Hammer CH panel owners who prioritize safety and straightforward installation in TAN breaker setups.
How We Picked
I evaluated these generator interlock kits based on several key criteria, including compatibility with popular panel brands, ease of installation, build quality, and safety features. Cost also played a role, but I prioritized options that offer a good balance between affordability and performance. To rank these products, I considered user reviews, technical specifications, and the versatility of each kit across different panel types. The top choices are those that provide the most reliable, straightforward, and safe interlock solutions for a wide range of residential setups.Factors to Consider When Choosing Best Generator Interlock Kit
Choosing the right generator interlock kit requires understanding your electrical system and your specific needs. It’s important to consider compatibility, ease of installation, and safety features. A good interlock kit should prevent back-feeding and ensure a safe switch-over during power outages. This guide highlights key factors that can influence your decision and help you avoid common pitfalls.Compatibility with Your Panel
Ensuring the interlock kit fits your panel brand and model is the most critical step. Some kits are designed specifically for brands like Eaton or Square D, while others are more versatile. Using an incompatible kit can lead to installation issues or safety concerns. Always check the product specifications and confirm compatibility before purchase to avoid costly mistakes.
Ease of Installation
Look for kits that come with clear instructions and are designed for straightforward installation. Kits that require minimal modifications reduce the risk of errors and save time. If you’re not experienced with electrical work, consider options that include detailed guides or even professional installation recommendations. Poorly installed kits can compromise safety and may not function correctly when needed.
Safety Features
Safety should be your top priority. A good interlock kit prevents the generator from energizing the main grid, avoiding back-feed that could endanger utility workers. Check for features like clear labeling, sturdy construction, and compliance with electrical codes. Investing in a certified kit helps ensure reliable protection during power switching.
Material Durability and Build Quality
Since these kits are installed outdoors or in garages, durability matters. Look for kits made with weather-resistant materials and sturdy components that resist corrosion. A well-built kit maintains safety and function over time, reducing the need for replacements or repairs.
Cost and Value
While cheaper kits may seem appealing, they often come with tradeoffs like limited compatibility or fewer safety features. Spending a bit more on a high-quality, versatile kit can provide better long-term value and peace of mind. Consider your specific needs and panel type, then choose a kit that offers the best balance of cost and performance.
Frequently Asked Questions
Can I install a generator interlock kit myself?
Installing a generator interlock kit can be a manageable DIY project if you have basic electrical knowledge and follow the manufacturer’s instructions carefully. However, electrical work always carries risks, especially when dealing with main service panels. If you’re unsure or uncomfortable working with live circuits, hiring a licensed electrician is strongly recommended to ensure safety and code compliance.
Will a universal interlock kit work with my specific panel?
Universal kits are designed to fit a broad range of panels, but they may not be compatible with all brands or models. It’s essential to verify the kit’s specifications and confirm compatibility with your panel before purchasing. An incompatible kit might not fit properly or could compromise safety, so double-checking is key.
What safety features should I look for in an interlock kit?
Look for features like mechanical barriers that prevent back-feed, clear labeling, and certifications that meet electrical safety standards. A well-designed kit should also include instructions for proper installation and testing. These features help ensure safe operation during power outages and prevent dangerous electrical conditions.
Are more expensive interlock kits worth the extra cost?
Higher-priced kits often offer greater durability, broader compatibility, and enhanced safety features. If you own a larger or less common panel, or if you want a long-lasting solution, investing in a premium kit can be worthwhile. Cheaper options might suffice for basic needs but could require replacement sooner or lack some safety assurances.
How do I know which interlock kit is best for my panel size?
Matching the kit to your panel’s amperage rating and physical dimensions is vital. Most kits specify the panel size they are designed for, such as 150A or 200A. Check your panel’s specifications and choose a kit that fits those parameters precisely. Proper fit ensures safe operation and ease of installation.
